PDR-Series High Precision Planetary Gearboxes

Only 0 left
SKU
PDR
Views: 1399
$50.00
The PDR series is an economy right angle rotary flange output precision planetary gearbox with accuracy down to less than 6 arc minutes. The PD series features lower inertia, lower size and weight, quieter operation, reduced backlash, increased efficiency and greater mounting versatility.

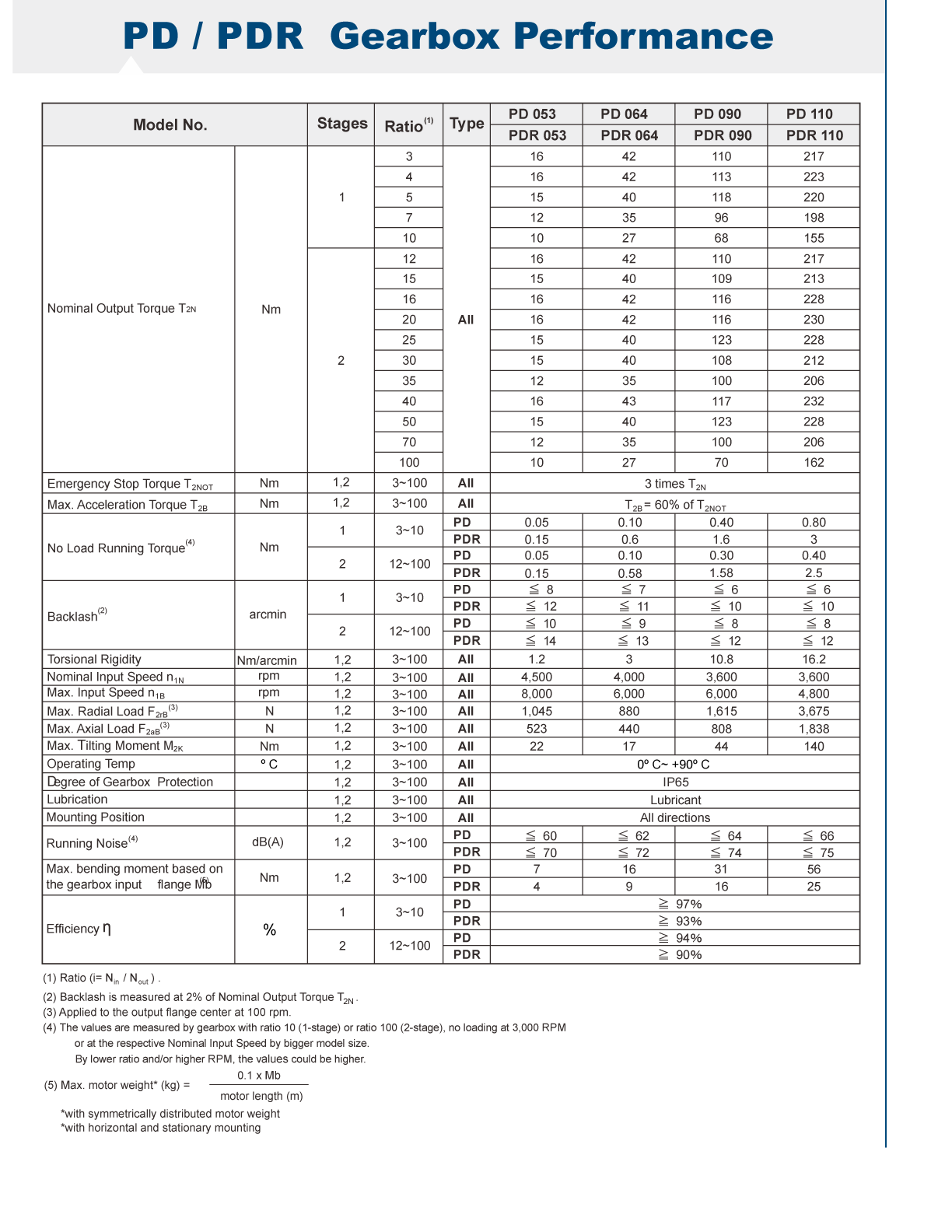

  • Output torque
    T2N : 10 Nm - 232 Nm
  • Ratios
    1-stage :  3/4/5/7/10
    2-stage :  15/16/20/25/30/35/40/50/70/100
  • Low backlash
    1-stage : ≤12-10 arcmin
    2-stage : ≤14-12 arcmin
  • high efficiency
    1-stage : ≧ 93%
    2-stage : ≧ 90%
  • Easy mount
  • Low Noise
  • Compact structure
  • Sizes - PDR053 / PDR064 / PDR090 / PDR110
Brand Description
History Color sit amet, consectetur adipiscing elit. In gravida pellentesque ligula, vel eleifend turpis blandit vel. Nam quis lorem ut mi mattis ullamcorper ac quis dui. Vestibulum et scelerisque ante, eu sodales mi. Nunc tincidunt tempus varius. Integer ante dolor, suscipit non faucibus a, scelerisque vitae sapien.

The Most Professional Servomotor Drive Planetary Gearbox Manufacturer in the World

Apex Dynamics, Inc. is a worldwide leader in manufacturing of planetary gearboxes. Based on more than twenty years of accumulated manufacturing and marketing experience, plus the highest level of technical production capabilities, Apex Dynamics, Inc. designed and built a technically advanced, high speed, low backlash servo application planetary gearbox. Our Break through patented technology (over 6 patents), provides the customer with the optimum high precision helical reducer at a reasonable price and is offered with the only tip to toe 5-Year warranty in the industry today, including the seals and bearings. Our company slogan is TRUTHFUL RESPONSIBLE CREATIVE. The primary focus in daily operation is quality. We pride ourselves on our dedication to quality; our duty, is customer satisfaction. We are continuously improving processes, finding proper and effective methods to provide customers new solutions for difficult applications, and developing new products.  Read More
