PSII-Series High Precision Planetary Gearboxes
Only 0 left
SKU
PSII
Views: 1478
$50.00
The Apex PSII series is the newest revision of the P series. The PII series design has been optimized for higher accuracy, lower weight and length, and greater motor mounting versatility. The PSII features an industry standard metric output flange, carbon steel and aluminum construction, precision bonded housings for greater accuracy and faster, more precise assembly, and laser welded pinions for the highest concentricity two part assemblies.

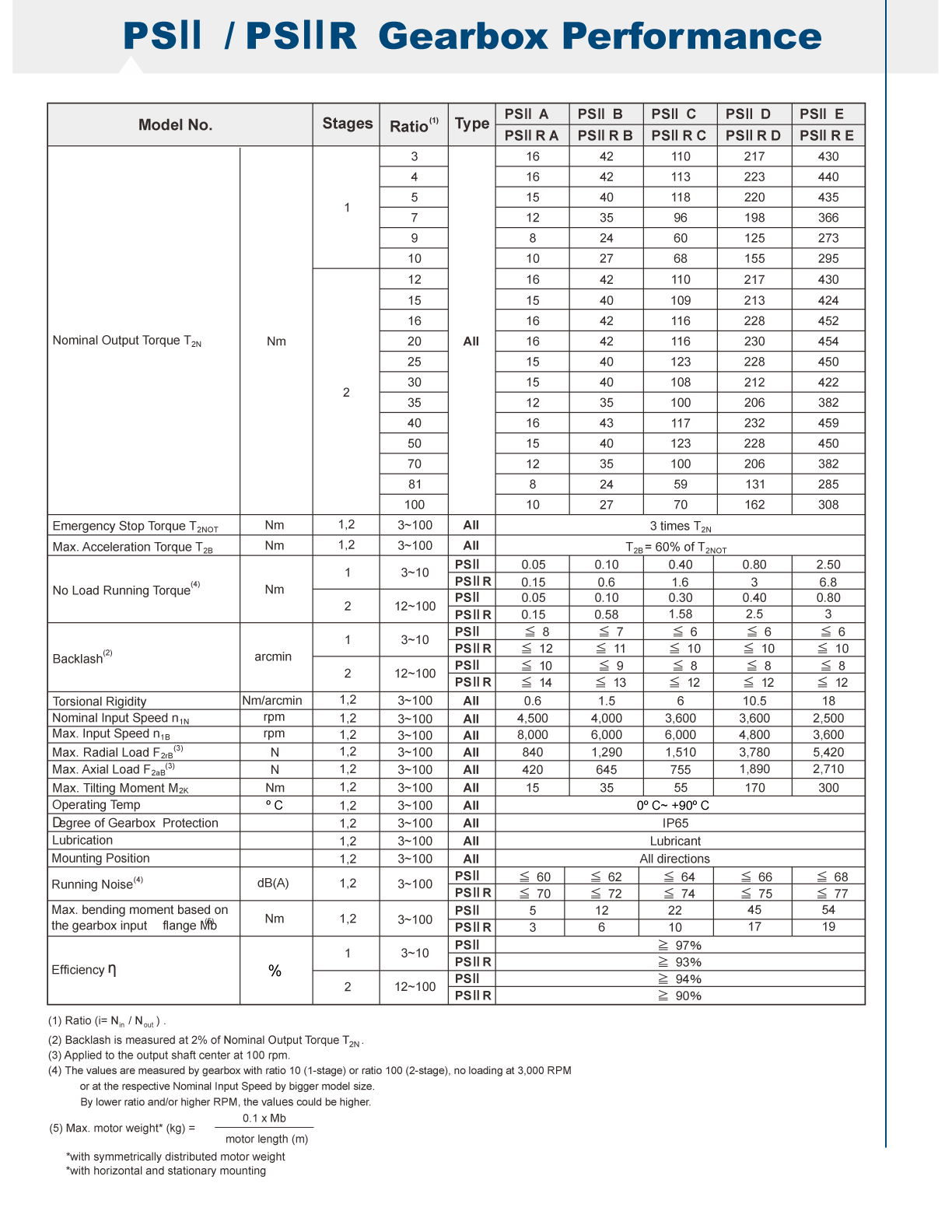

- Output torque
T2N : 4.3 Nm - 178 Nm
- Ratios
1-stage : 3/4/5/7/9/10
2-stage : 15/16/20/25/30/35/40/50/70/81/100
- Low backlash
1-stage : ≤6,7 or 8 arcmin
2-stage : ≤8,9 or 10 arcmin
- high efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
- Easy mount
- Low Noise
- Compact structure
